PagBank

A loja tem a possibilidade de configurar o roteamento de transações feitas com cartão de crédito no Carat por vários meios de pagamento, um desses meios é o PagBank.

Assim, a loja pode configurar o Carat para que as transações feitas com cartões VISA ou MASTERCARD, por exemplo, sejam roteadas pela PagBank.

Interfaces Carat suportadas para integração

É possível utilizar as seguintes interfaces para a integração com o roteamento PagBank:

REST

• Interface Pagamento
• Interface Pré Autorização
• Interface Captura
• Interface Cancelamento

Observação: Esta integração também aceita o envio de dados de autenticação 3DS (eci, xid e cavv). Saiba mais.

Autorizadoras permitidas

As seguintes autorizadoras são suportadas pelo roteamento Pagbank:

• CRÉDITO

  • VISA (1)
  • MASTERCARD (2)
  • AMERICAN EXPRESS (3)
  • ELO (41)

• DÉBITO

  • VISA ELECTRON (221)
  • MASTERCARD DÉBITO (286)

Credenciamento

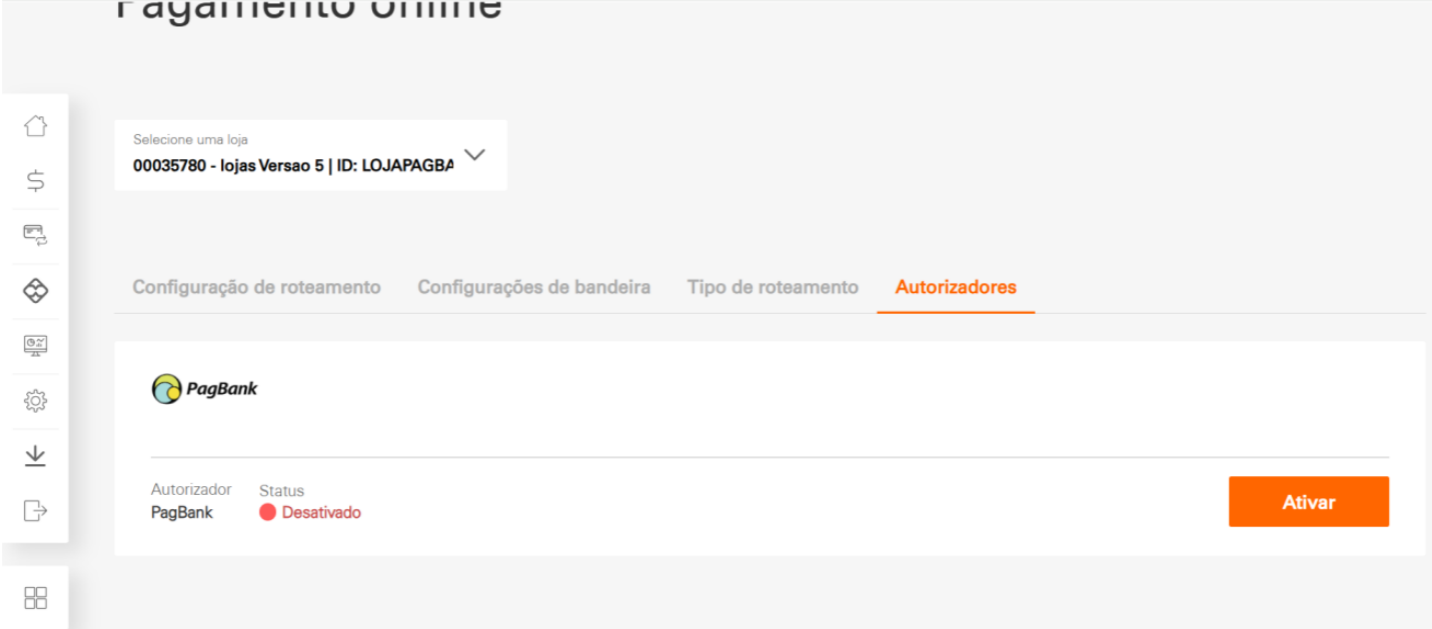

A ativação para uso do pagbank em uma loja Carat deve ser feita via Portal Carat.

Onde tem a opção de ativar clicando no botão.

Após isso será redirecionado para aceitar as permissões no PagBank.

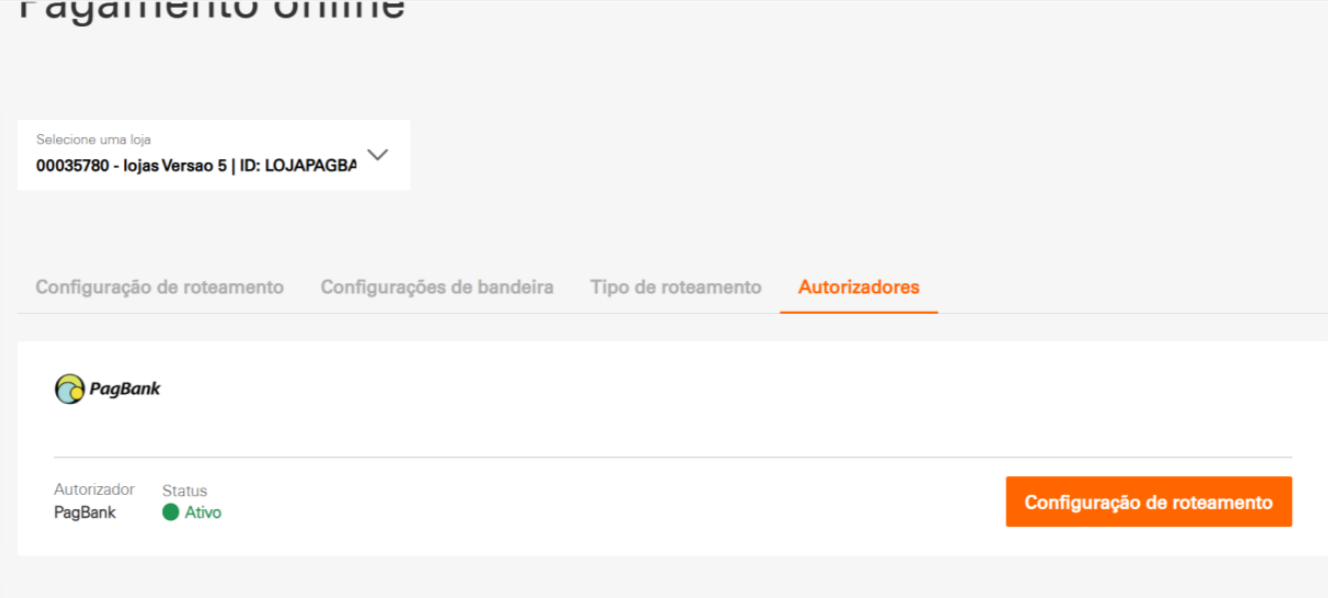

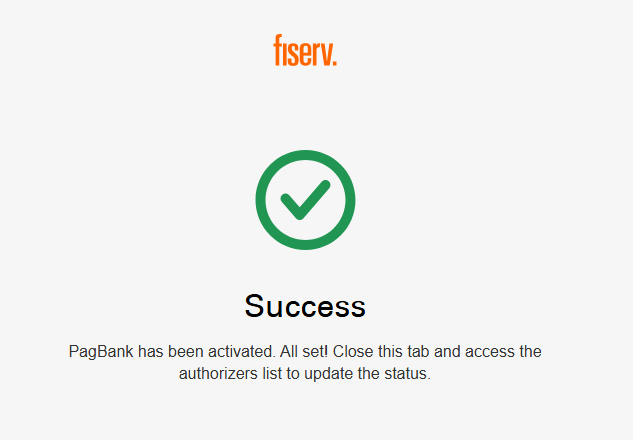

Ao final será informado da ativação com sucesso e o status no Portal Carat estará como ativo.

REST

Mas os parâmetros abaixos são obrigatórios para Pagamentoe Pré Captura

Parâmetro	Descrição	Formato	Obrigatório
additional_data.payer	Elemento para envio de dados referentes ao comprador.
name	Nome do cliente	< 100 AN	SIM
surname	Sobrenome do cliente	< 100 AN	SIM
email	Endereço de e-mail do cliente	< 100 AN	SIM
identification_number	Número de documento fiscal do cliente	< 100 AN	SIM

Pagamento

É possível enviar os seguintes campos na pagamento:

Exemplo de pagamento

Requisição:

curl --location 'http://localhost:8080/e-sitef/api/v2/payments/' \

--header 'Content-Type: application/json' \

--header 'merchant_id: MERCHANTCODE' \

--header 'merchant_key: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX' \

--data-raw '{

"merchant_usn": "2423423434",

"order_id": "0001755693903650",

"installments": "1",

"installment_type": "4",

"authorizer_id": "2",

"amount": "1834",

"card": {

"expiry_date": "1226",

"security_code": "123",

"number": "XXXXXXXXXXXXXXXX"

},

"additional_data": {

"payer": {

"name": "John",

"surname": "Doe",

"email": "john@doe.com",

"identification_number": "47764543004"

}

}

}'

Resposta:

{

"code": "0",

"message": "OK. Transaction successful.",

"payment": {

"authorizer_code": "20000",

"status": "CON",

"nit": "29211ab6d779a6931215e3d7bc19bb6abc747424daad848c60066bb04cb48c57",

"order_id": "0001755721406930",

"customer_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 17:23:50 \n CODIGO PEDIDO: 0001755721406930 \n \n ID TRANSACAO: \nCHAR_B1FA7A35-BA37-46B4-9BB4-A984330D0300\n \n VALOR: 18,34 \n \n (e-SiTef) \n \n1a VIA - CLIENTE \n \n",

"merchant_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 17:23:50 \n CODIGO PEDIDO: 0001755721406930 \n \n ID TRANSACAO: \nCHAR_B1FA7A35-BA37-46B4-9BB4-A984330D0300\n \n VALOR: 18,34 \n NSU e-SiTef: 250820038414360 \n \n (e-SiTef) \n \n2a VIA - ESTABELECIMENTO \n \n",

"authorizer_id": "2",

"acquirer_id": "1328",

"acquirer_name": "Pagbank",

"merchant_usn": "2423423434",

"esitef_usn": "250820038414360",

"host_usn": "032416400102",

"tid": "CHAR_B1FA7A35-BA37-46B4-9BB4-A984330D0300",

"amount": "1834",

"payment_type": "C",

"payment_date": "20/08/2025T17:23"

}

}

Exemplo de Pagamento com recorrência

Requisição:

curl --location 'http://localhost:8080/e-sitef/api/v2/payments/' \

--header 'Content-Type: application/json' \

--header 'merchant_id: MERCHANTCODE' \

--header 'merchant_key: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX' \

--data-raw '{

"merchant_usn": "12050620649",

"order_id": "RMC1755721854726",

"installments": "1",

"installment_type": "4",

"authorizer_id": "41",

"amount": "1100",

"card": {

"expiry_date": "1222",

"security_code": "123",

"number": "XXXXXXXXXXXXXXXX"

},

"additional_data": {

"payer": {

"name": "John",

"surname": "Doe",

"email": "john@doe.com",

"identification_number": "47764543004"

},

"cardOnFileUsage":"first",

"cardOnFileReason": "recurring",

"acquirer": {

"cardOnFile": {

"usage": "first",

"reason": "recurring"

},

"recurrency": "true"

}

}

}'

Resposta:

{

"code": "0",

"message": "OK. Transaction successful.",

"payment": {

"authorizer_code": "20000",

"status": "CON",

"nit": "9f77551490b1a8b9b20610d7093559a6c4383ed9bc7a512db37c2a3722e77e3d",

"order_id": "RMC1755721854726",

"customer_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 17:31:15 \n CODIGO PEDIDO: RMC1755721854726 \n \n ID TRANSACAO: \nCHAR_E672B951-60E0-4968-94E4-D81B2C31C4C8\n \n VALOR: 11,00 \n \n (e-SiTef) \n \n1a VIA - CLIENTE \n \n",

"merchant_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 17:31:15 \n CODIGO PEDIDO: RMC1755721854726 \n \n ID TRANSACAO: \nCHAR_E672B951-60E0-4968-94E4-D81B2C31C4C8\n \n VALOR: 11,00 \n NSU e-SiTef: 250820038414390 \n \n (e-SiTef) \n \n2a VIA - ESTABELECIMENTO \n \n",

"authorizer_id": "41",

"acquirer_id": "1328",

"acquirer_name": "Pagbank",

"merchant_usn": "12050620649",

"esitef_usn": "250820038414390",

"host_usn": "032416400102",

"tid": "CHAR_E672B951-60E0-4968-94E4-D81B2C31C4C8",

"amount": "1100",

"payment_type": "C",

"payment_date": "20/08/2025T17:31"

}

}

Exemplo de Pagamento com antifraude

Requisição:

curl --location 'http://localhost:8080/e-sitef/api/v2/payments/' \

--header 'Content-Type: application/json' \

--header 'merchant_id: MERCHANTCODE' \

--header 'merchant_key: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX' \

--data-raw '{

"merchant_usn": "12050620649",

"order_id": "1672769143439",

"installments": "1",

"installment_type": "4",

"authorizer_id": "2",

"amount": "1301",

"card": {

"expiry_date": "1224",

"security_code": "123",

"number": "XXXXXXXXXXXXXXXX"

},

"additional_data": {

"vehicle":{

"make": "Bentley",

"model": "Bacalar",

"renavam": "12312312312",

"registration": "ABC1234",

"vid": "5GZCZ43D13S812715",

"type": "car",

"usage": "private",

"owner": {

"tax_id": "540.830.640-21",

"name": "Cicero"

}

},

"creation_date": "11/12/2024",

"anti_fraud": "enabled_before_auth",

"visitor_id": "XKhas09jcks",

"device": {

"user_id": null,

"fingerprint": "e4f2c690951038a8f77aa583847",

"provider": "SO",

"category": "Mobile",

"model": "S10",

"platform": "Android",

"manufacturer": "Samsung",

"os": "Android 11",

"browser": "Chrome",

"language": "pt"

},

"items": [

{

"title": "title1",

"quantity": "1",

"unit_price": "1111",

"description": "description1",

"id": "id1",

"discount_amount": "111",

"sku": "sku1",

"creation_date": "11/01/2011"

}

],

"payer": {

"name": "John",

"surname": "Doe",

"email": "john@doe.com",

"born_date": "1990-01-01T11:11:11",

"creation_date": "02/03/2004",

"is_new_client": "true",

"is_vip_client": "true",

"phones": [

{

"number": "333333333",

"ddd": "22",

"ddi": "11"

},

{

"number": "666666666",

"ddd": "55",

"ddi": "44"

}

],

"identification_number": "47764543004"

},

"shipment": {

"name": "Fernando",

"surname": "Bezerra",

"address": {

"zip_code": "98764312",

"street_number": "987",

"street_name": "Rua Shipment",

"complement": "ap. 587",

"city": "São Shipment",

"state": "MA",

"country": "BRA"

}

},

"passengers": [

{

"name": "Miguel",

"last_name": "Herrera",

"frequent_flyer_card": "frequentFlyerCard",

"legal_document_type": "1",

"legal_document": "12312312312",

"birth_date": "1980-07-28T10:40:00",

"customer_class": "customerClass",

"nationality": "BRA",

"is_frequent_traveler": "true",

"is_with_special_needs": "true"

}

],

"connections": [

{

"company": "Verde",

"class": "first",

"from": "GRU",

"to": "CGH",

"departure_date": "2023-09-07T07:09:00",

"journey_type": "OUTWARD",

"origin_city": "San Juan",

"destination_city": "Homero Lopez",

"class_code": "VIP"

},

{

"company": "Rosa",

"class": "economy",

"from": "BSB",

"to": "VCP",

"departure_date": "2022-10-21T16:39:00",

"journey_type": "RETURN",

"origin_city": "San Pablo",

"destination_city": "Juanito Cruz",

"class_code": "ECONOMY"

}

],

"hotel_reservations": [

{

"hotel": "Hotel Green Tree",

"address": {

"zip_code": "83392019",

"street_number": "529",

"street_name": "Rua Hoteleira",

"complement": "ap. 019",

"city": "San Hotel",

"state": "AC",

"country": "EN"

},

"rooms": [

{

"number": "902",

"code": "ROOM902",

"type": "King Size",

"check_in_date": "2020-01-09T12:30:00",

"check_out_date": "2020-01-19T13:00:00",

"number_of_guests": "1",

"board_basis": "Vegan",

"guests": [

{

"name": "José Aníbal",

"document": "98798798712",

"document_type": "cpf",

"birth_date": "12/03/1970",

"nationality": "BRA"

}

]

}

],

"category": "categoryhotel"

}

],

"billing_data": {

"address": {

"zip_code": "12341234",

"street_number": "666",

"street_name": "Rua Billing",

"complement": "ap. 2369",

"city": "São Billing",

"state": "AM",

"country": "BRA"

}

},

"travel": {

"transport_type": "flight",

"expiration_date": "2022-02-14T01:30:00"

},

"discount_info": "Informações de desconto",

"events": [

{

"name": "Evento de Rock",

"date": "2021-11-22T09:28:00",

"type": "show",

"subtype": "music",

"venue": {

"name": "Debicard Hall",

"street_name": "Rua do Evento",

"street_number": "928",

"city": "Jardinópolis",

"state": "MS",

"country": "DO",

"capacity": "300"

},

"tickets": [

{

"id": "12h374612h4h",

"category": "social",

"section": "Seção 1",

"premium": "true",

"attendee": {

"name": "Daniel Almeida",

"document": "71728293945",

"document_type": "other",

"birth_date": "03/10/1990"

}

}

]

}

]

}

}'

Resposta:

{

"code": "0",

"message": "OK. Transaction successful.",

"payment": {

"authorizer_code": "20000",

"status": "CON",

"nit": "e6e2f71e1c582d8cccdb3d79c2b00e232165479f9dd282bb2af5e273d30f3247",

"order_id": "0001755726662008",

"customer_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 18:51:26 \n CODIGO PEDIDO: 0001755726662008 \n \n ID TRANSACAO: \nCHAR_CA0A7DCE-C5B5-4DC6-B672-A843B76BE7F2\n \n VALOR: 18,00 \n \n (e-SiTef) \n \n1a VIA - CLIENTE \n \n",

"merchant_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 18:51:26 \n CODIGO PEDIDO: 0001755726662008 \n \n ID TRANSACAO: \nCHAR_CA0A7DCE-C5B5-4DC6-B672-A843B76BE7F2\n \n VALOR: 18,00 \n NSU e-SiTef: 250820038414590 \n \n (e-SiTef) \n \n2a VIA - ESTABELECIMENTO \n \n",

"authorizer_id": "2",

"acquirer_id": "1328",

"acquirer_name": "Pagbank",

"merchant_usn": "2423423434",

"esitef_usn": "250820038414590",

"host_usn": "032416400102",

"tid": "CHAR_CA0A7DCE-C5B5-4DC6-B672-A843B76BE7F2",

"amount": "1800",

"payment_type": "C",

"payment_date": "20/08/2025T18:51"

}

}

Exemplo de Pagamento com 3DS

Requisição:

curl --location 'http://localhost:8080/e-sitef/api/v2/payments/' \

--header 'Content-Type: application/json' \

--header 'merchant_id: MERCHANTCODE' \

--header 'merchant_key: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX' \

--data-raw '{

"merchant_usn": "2423423434",

"order_id": "0001755726662008",

"installments": "1",

"installment_type": "4",

"authorizer_id": "2",

"amount": "1800",

"card": {

"expiry_date": "1226",

"security_code": "123",

"number": "XXXXXXXXXXXXXXXX"

},

"additional_data": {

"payer": {

"name": "John",

"surname": "Doe",

"email": "john@doe.com",

"identification_number": "47764543004"

}

},

"external_authentication": {

"xid": "MTIzNDU2Nzg5MDEyMzQ1Njc4OTA=",

"eci": "05",

"cavv": "jMoRyYgNSt0ZAREBBu8LHI+3oZo="

}

}'

Resposta:

{

"code": "0",

"message": "OK. Transaction successful.",

"payment": {

"authorizer_code": "20000",

"status": "CON",

"nit": "e6e2f71e1c582d8cccdb3d79c2b00e232165479f9dd282bb2af5e273d30f3247",

"order_id": "0001755726662008",

"customer_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 18:51:26 \n CODIGO PEDIDO: 0001755726662008 \n \n ID TRANSACAO: \nCHAR_CA0A7DCE-C5B5-4DC6-B672-A843B76BE7F2\n \n VALOR: 18,00 \n \n (e-SiTef) \n \n1a VIA - CLIENTE \n \n",

"merchant_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 18:51:26 \n CODIGO PEDIDO: 0001755726662008 \n \n ID TRANSACAO: \nCHAR_CA0A7DCE-C5B5-4DC6-B672-A843B76BE7F2\n \n VALOR: 18,00 \n NSU e-SiTef: 250820038414590 \n \n (e-SiTef) \n \n2a VIA - ESTABELECIMENTO \n \n",

"authorizer_id": "2",

"acquirer_id": "1328",

"acquirer_name": "Pagbank",

"merchant_usn": "2423423434",

"esitef_usn": "250820038414590",

"host_usn": "032416400102",

"tid": "CHAR_CA0A7DCE-C5B5-4DC6-B672-A843B76BE7F2",

"amount": "1800",

"payment_type": "C",

"payment_date": "20/08/2025T18:51"

}

}

Pre autorização

É possível enviar os seguintes campos na pre-autorizacao:

Exemplo

Requisição:

curl --location 'http://localhost:8080/e-sitef/api/v2/preauthorizations/' \

--header 'merchant_id: MERCHANTCODE' \

--header 'merchant_key: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX' \

--header 'Content-Type: application/json' \

--data-raw '{

"merchant_usn": "2423423434",

"order_id": "0001755722641945",

"installments": "1",

"installment_type": "4",

"authorizer_id": "2",

"amount": "1300",

"card": {

"expiry_date": "1222",

"security_code": "123",

"number": "XXXXXXXXXXXXXXXX"

},

"additional_data": {

"payer": {

"name": "John",

"surname": "Doe",

"email": "john@doe.com",

"identification_number": "47764543004"

}

}

}'

Resposta:

{

"code": "0",

"message": "OK. Transaction successful.",

"pre_authorization": {

"authorizer_code": "20000",

"status": "CON",

"nit": "e6918d1a70c54090939abefc3e543293ed95702bda814ecd6d177a7e77444d7f",

"order_id": "0001755722641945",

"customer_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 17:44:44 \n CODIGO PEDIDO: 0001755722641945 \n \n ID TRANSACAO: \nCHAR_044B5CEB-84F9-47A9-A886-BB8C55D96FA5\n \n VALOR: 13,00 \n \n (e-SiTef) \n \n1a VIA - CLIENTE \n \n",

"merchant_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 17:44:44 \n CODIGO PEDIDO: 0001755722641945 \n \n ID TRANSACAO: \nCHAR_044B5CEB-84F9-47A9-A886-BB8C55D96FA5\n \n VALOR: 13,00 \n NSU e-SiTef: 250820038414404 \n \n (e-SiTef) \n \n2a VIA - ESTABELECIMENTO \n \n",

"authorizer_id": "2",

"acquirer_id": "1328",

"acquirer_name": "Pagbank",

"merchant_usn": "2423423434",

"esitef_usn": "250820038414404",

"host_usn": "032416400102",

"tid": "CHAR_044B5CEB-84F9-47A9-A886-BB8C55D96FA5",

"amount": "1300",

"payment_type": "C"

}

}

Captura

É possível enviar os seguintes campos na pre-autorizacao-rest-capture.

Observação: o cancelamento pode ser total ou parcial.

Exemplo

Requisição:

curl --location 'http://localhost:8080/e-sitef/api/v2/preauthorizations/' \

--header 'merchant_id: MERCHANTCODE' \

--header 'merchant_key: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX' \

--header 'Content-Type: application/json' \

--data-raw '{

"merchant_usn": "2423423434",

"order_id": "0001755723116888",

"installments": "1",

"installment_type": "4",

"authorizer_id": "2",

"amount": "1300",

"card": {

"expiry_date": "1222",

"security_code": "123",

"number": "XXXXXXXXXXXXXXXX"

},

"additional_data": {

"payer": {

"name": "John",

"surname": "Doe",

"email": "john@doe.com",

"identification_number": "47764543004"

}

}

}'

Resposta:

{

"code": "0",

"message": "OK. Transaction successful.",

"pre_authorization": {

"authorizer_code": "20000",

"status": "CON",

"nit": "1342033462cce3110b5cb4f0e9dd62fa744bc08afb303daa9e96dc65e6169fd8",

"order_id": "0001755723116888",

"customer_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 17:52:22 \n CODIGO PEDIDO: 0001755723116888 \n \n ID TRANSACAO: \nCHAR_D11A0701-6621-4AC4-89E1-0756B2C17B50\n \n VALOR: 13,00 \n \n (e-SiTef) \n \n1a VIA - CLIENTE \n \n",

"merchant_receipt": " CREDITO \n \n ESTAB: LOJAPAGBANK \n DATA: 20/08/2025 HORA: 17:52:22 \n CODIGO PEDIDO: 0001755723116888 \n \n ID TRANSACAO: \nCHAR_D11A0701-6621-4AC4-89E1-0756B2C17B50\n \n VALOR: 13,00 \n NSU e-SiTef: 250820038414454 \n \n (e-SiTef) \n \n2a VIA - ESTABELECIMENTO \n \n",

"authorizer_id": "2",

"acquirer_id": "1328",

"acquirer_name": "Pagbank",

"merchant_usn": "2423423434",

"esitef_usn": "250820038414454",

"host_usn": "032416400102",

"tid": "CHAR_D11A0701-6621-4AC4-89E1-0756B2C17B50",

"amount": "1300",

"payment_type": "C"

}

}

Cancelamento

É possível enviar os seguintes campos na cancelamento:

Observação: o cancelamento pode ser total ou parcial. Além disso o cancelamento tem um tempo de sincronização de uns 3-5 minutos. E pode apresentar falha se o tempo da transação for muito curto.

Exemplo

Requisição:

curl --location 'http://localhost:8080/e-sitef/api/v2/cancellations/1342033462cce3110b5cb4f0e9dd62fa744bc08afb303daa9e96dc65e6169fd8' \

--header 'Content-Type: application/json' \

--header 'merchant_id: MERCHANTCODE' \

--header 'merchant_key: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX' \

--header 'Authorization: Bearer CODE' \

--data '{

"amount": "1300"

}'

Resposta:

{

"code": "0",

"message": "OK. Transaction successful.",

"cancellation": {

"authorizer_code": "20000",

"authorizer_message": "Refund successful.",

"status": "CON",

"nit": "1c1caed9c650b298e52e8b1acd7d9eb6b6e85bf029dc285f682b86e6283479ac",

"order_id": "1665693831749",

"customer_receipt":"=== COMPROVANTE ===",

"merchant_receipt":"=== COMPROVANTE ===",

"authorizer_id": "2",

"acquirer_id": "202",

"authorizer_date": "08/09/2022T17:43",

"merchant_usn": "12050620649",

"esitef_usn": "221013109643171",

"host_usn": "828420940",

"tid": "221013109643160",

"amount": "1300",

"payment_type": "C",

"is_host_cancel": "false"

}

}
