Examples

Example 1 - Automation divides the CNPJ into 2 parts

In the example below, the CNPJ 77777777333333 was collected in two parts: in the first, the initial 8 digits were collected and in the second, the final 6 digits were collected.

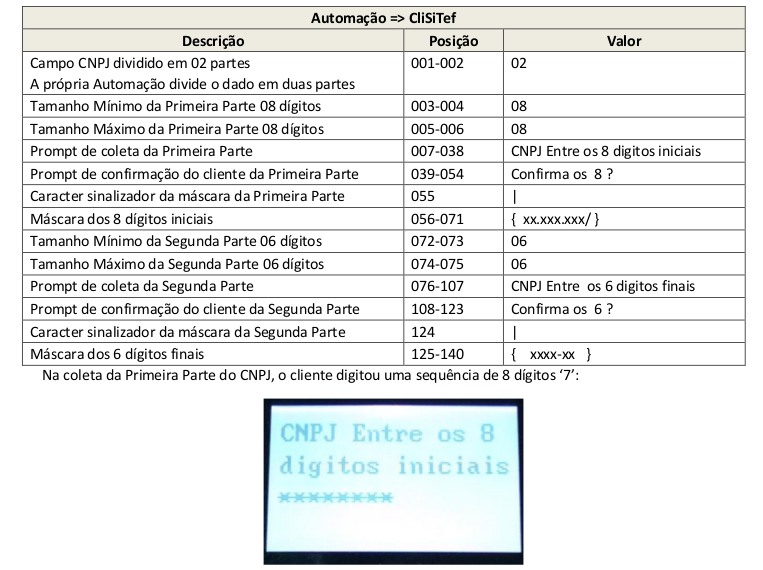

Consider the value of the Input parameter (FieldType 669) the content below (140 characters).

020808CNPJ Enter the initial 8 digitsConfirm the 8 ?|{ xx.xxx.xxx/ }0606CNPJ

Enter the final 6 digits Confirm the 6 ?|{

xxxx-xx

}

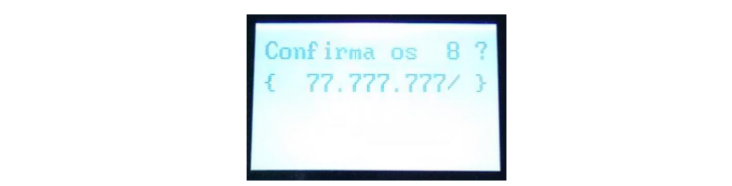

The initial 8 digits of the CNPJ were confirmed by the customer (by pressing the <ENTER> key on the PinPad):

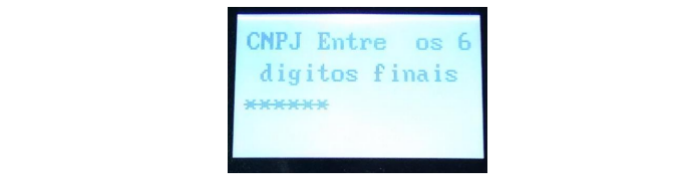

When collecting the Second Part of the CNPJ, the customer entered a 6-digit sequence ‘3’:

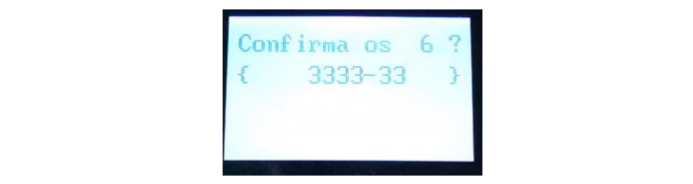

The final 6 digits of the CNPJ were confirmed by the customer (by pressing the <ENTER> key on the PinPad):

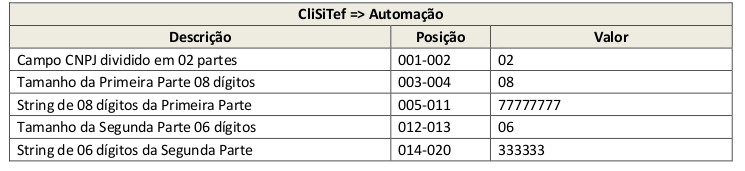

In the response, CliSiTef returns the Output parameter (Field Type 670) to Commercial Automation, with the content below (20 characters).

02087777777706333333
