Capture of the release/identifier access key without MKSE Library

In this scenario, the automation passes function code 790 to IniciaFuncaoSiTefInterativo, which manages the entire flow internally, returning the password opened in TypeField 668.

In the collection flow, TypeCampo 2955 will be requested, where the commercial automation must inform the release key/dentifier, and TypeCampo 2954, where the automation must inform the access key.

Note: This functionality is available starting with clisitef 5.0.114.41.

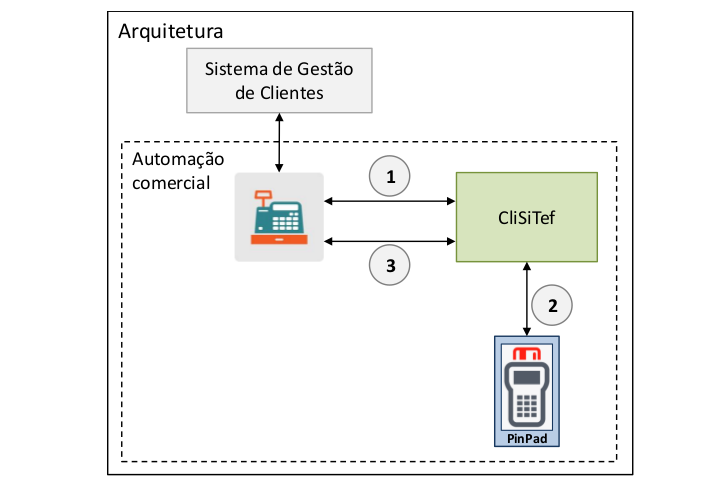

Information flow

(1) After configuring CliSiTef, Commercial Automation uses function 790 in IniciaFuncaoSiTefInterativo. The Identification Code, Secret Opening Key and the customer's card trail will be collected.

(2) CliSiTef requests to capture the password on the PinPad.

(3) CliSiTef obtains the password in clear form, passing it on to Commercial Automation.
