Data information to be captured in the pinpad

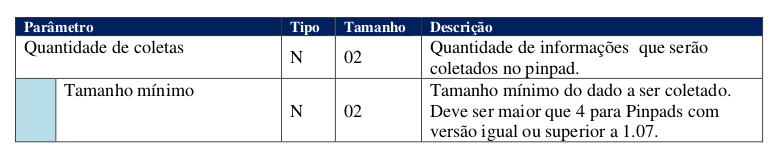

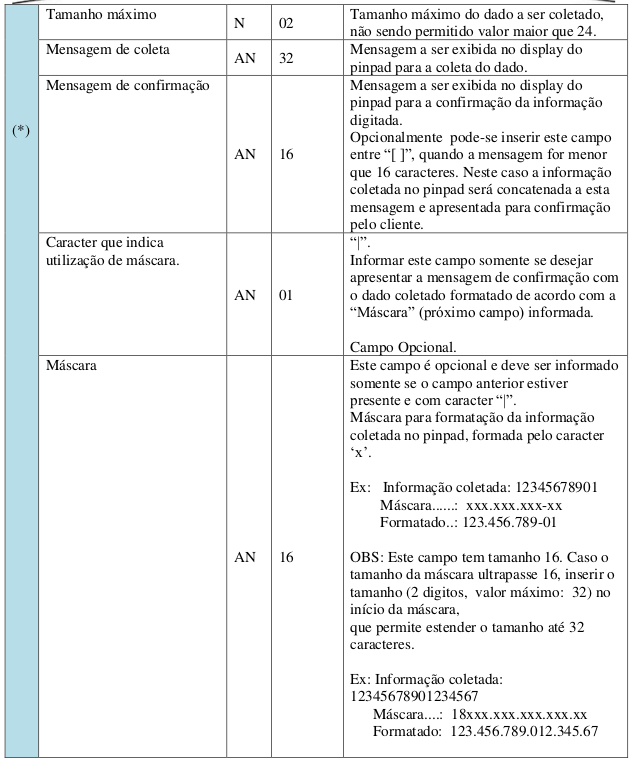

This field must contain a set of parameters for data capture that must be carried out on the pinpad. You Parameters must follow the layout as shown in the table below:

Observation:

1. (\*) – The fields in this group are repeated if a value is entered in the “Number of Collections” field greater than 01.

2. Pinpad is a device designed for password collection. The minimum length of a password is 04 and maximum 12 digits, so any other information collected on the pinpad must respect these sizes.

3. Information whose maximum size exceeds 12 digits (defined as a maximum of 24 for the “Data Collection on Pinpad” transaction) must be collected in two stages:

   • 1st Step: Collect a maximum of 12 digits

   • 2nd Step: Collect the remainder

   There are two options for carrying out this collection:

   1. Enter the total quantity to be collected in the “Maximum size” field. Ex: Maximum size: 17

      In this option, the pinpad always captures 12 digits in the 1st stage and the rest in the 2nd stage. In this case, we remind you that the minimum quantity for capture must be respected (to 2nd stage there must be at least 04 digits left for capture), otherwise the Customer Sitef/Pinpad will return error to Automation.

   2. Define 02 records (“Number of collections” field: 02) to capture information, and divide the size between the two captures. Ex: Capture of CNPJ (14 digits)

      In the 1st record we can capture 08 digits and in the 2nd record we can capture the rest, 06 digits.

4. If you have entered a mask to format the collected data, after applying the mask to information will be linked to the “Confirmation Message” to be displayed on the pinpad display. Remembering that the size of the “Confirmation Message” + “Formatted Information” should not exceed 32 characters, otherwise the SiTef Client will return an error, as the information cannot be be fully displayed on the pinpad.

5. If there are inconsistencies in the parameters entered, the collection will be aborted and the SiTef/Pinpad Client will return error to Automation.
